Ampfort Fuseholders and Clips - 5AG 10x38mm

Ampfort fuseholders and clips offer a comprehensive solution to a variety of application requirements.

These are metal fuse clips for AGC/6AG (10x38mm ) Style fuses. They are intended to be used as fuse holders in PC Board mounting applications (through hole). Each fuse clip has 2 solder tabs and will hold a 5AG type fuse when used in pairs.

[10x38 fuse clip] is a kind of safety protection element widely used in various electronic devices. Its main function is that when the circuit is abnormal, the power is cut off by melting fuses to prevent the equipment from being damaged or caused by a safety accident such as fire due to excessive current.

The size of this fuse clip is 10mm x 38mm, which is suitable for most standard size fuses. Its design structure is compact and easy to install, which can be quickly installed on the circuit board. At the same time, it also has good conductive performance and stable mechanical strength. It can work normally under large current to ensure the safe operation of the circuit.

When using the 10x38 fuse clip, you need to pay attention to the following points: First of all, choose the appropriate fuse, and its rated current value should be slightly smaller than the maximum working current of the circuit. Prevent a failure caused by poor contact;

Nominal current: 30A

Nominal voltage: 250V AC

RoHS compliant: yes

Specification: FS-6700(PCB side connection)

Suitable for fuses: 10X38 mm

Connection Type: Solder Leads for PC Board Mounting

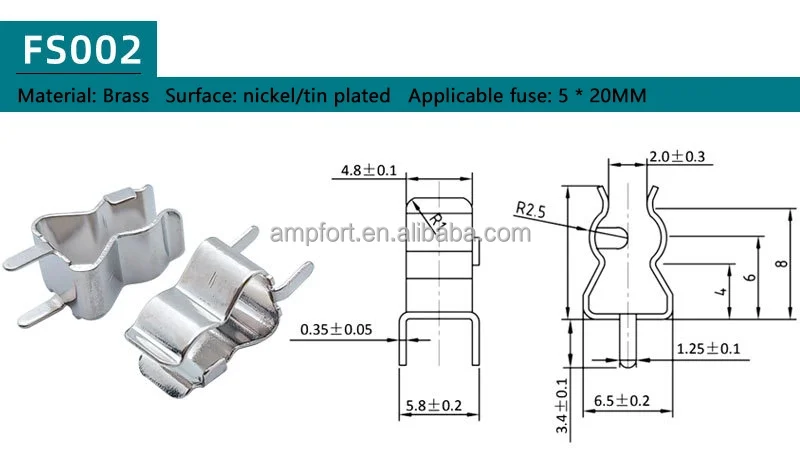

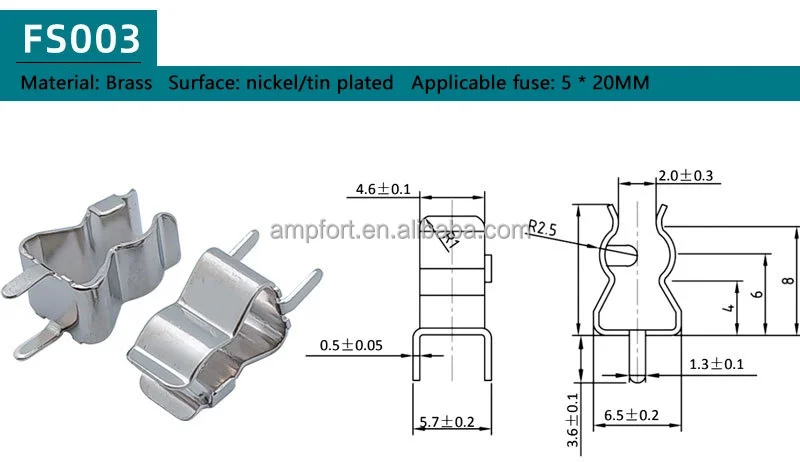

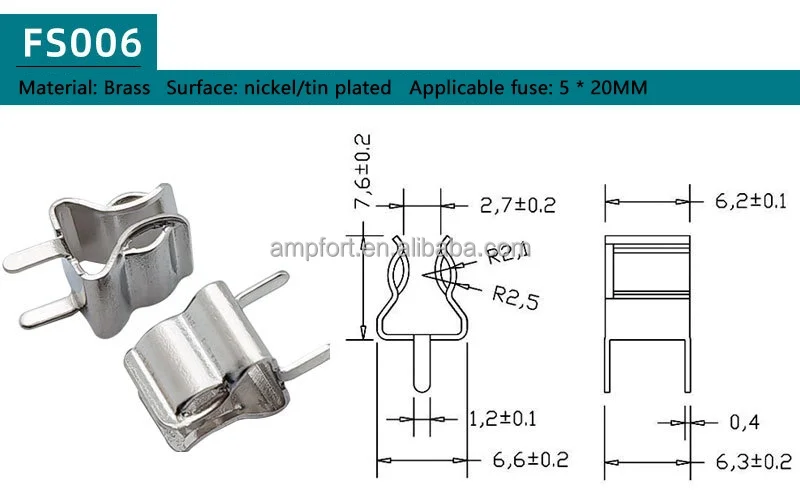

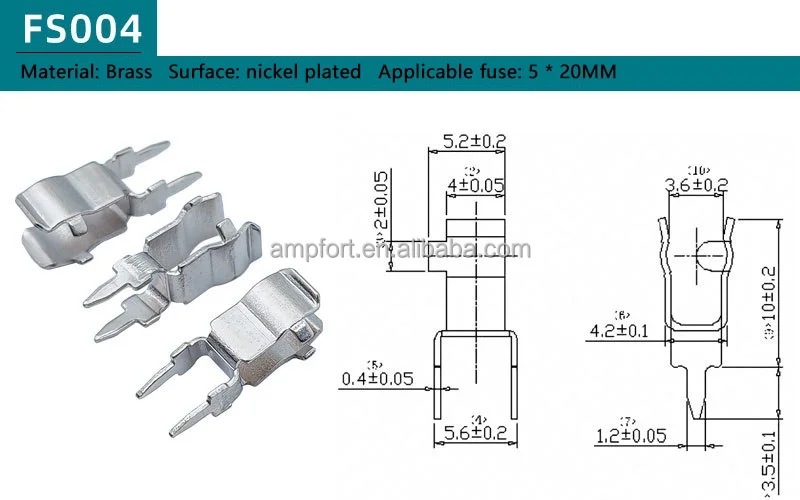

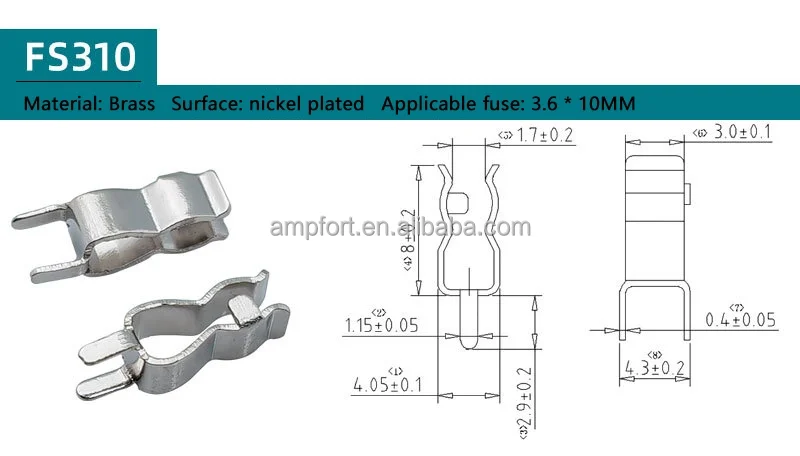

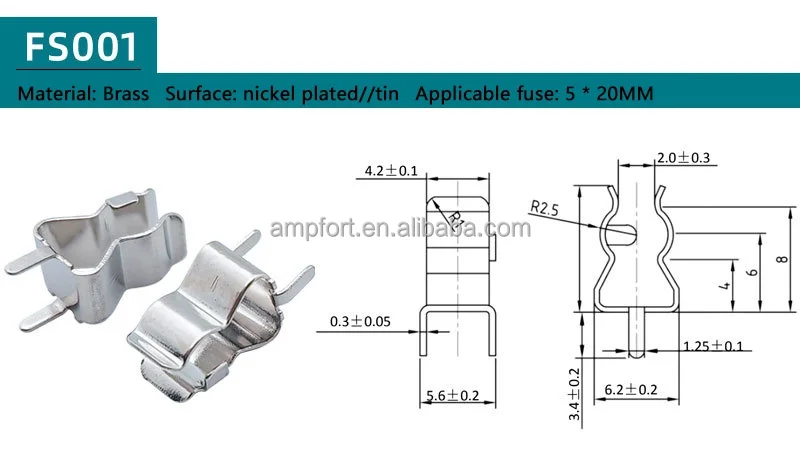

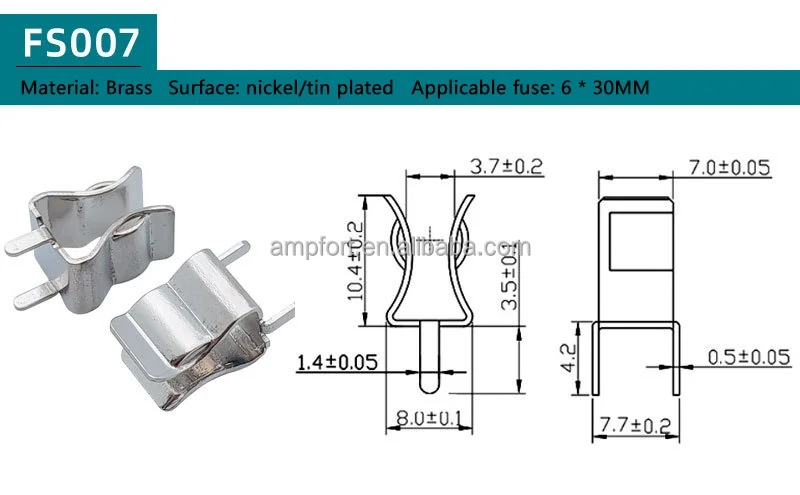

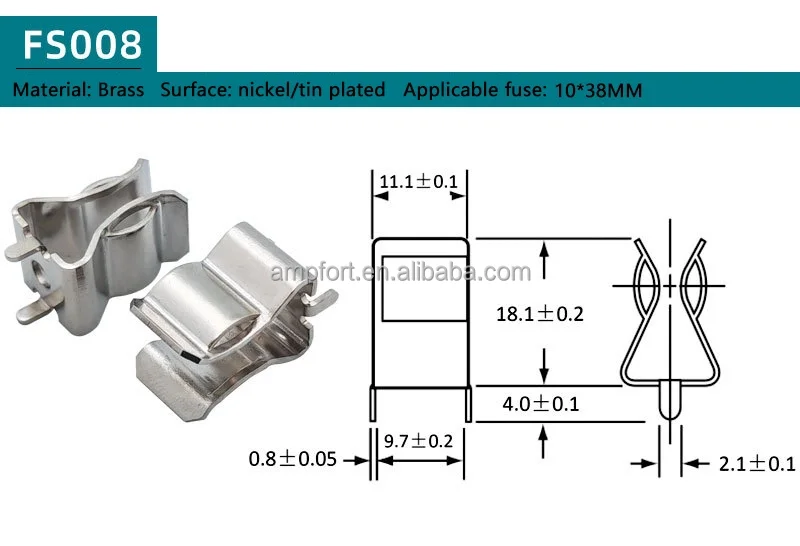

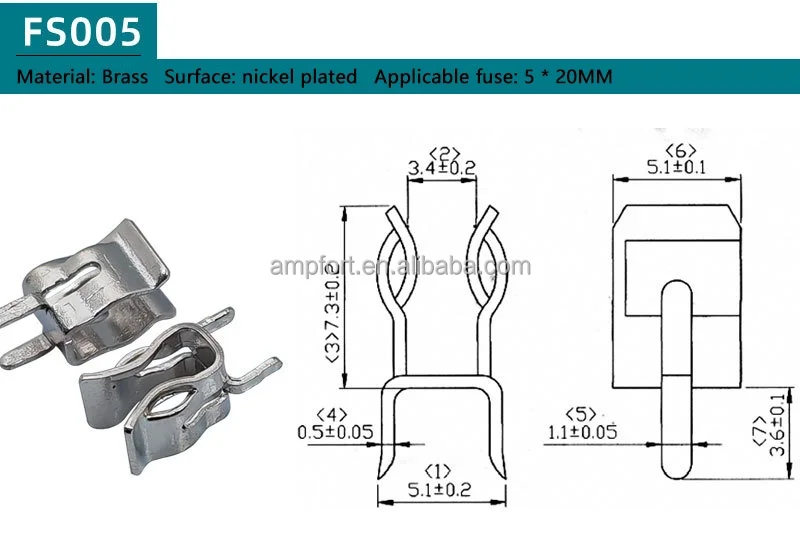

1.Size

2.Electrical Characteristics

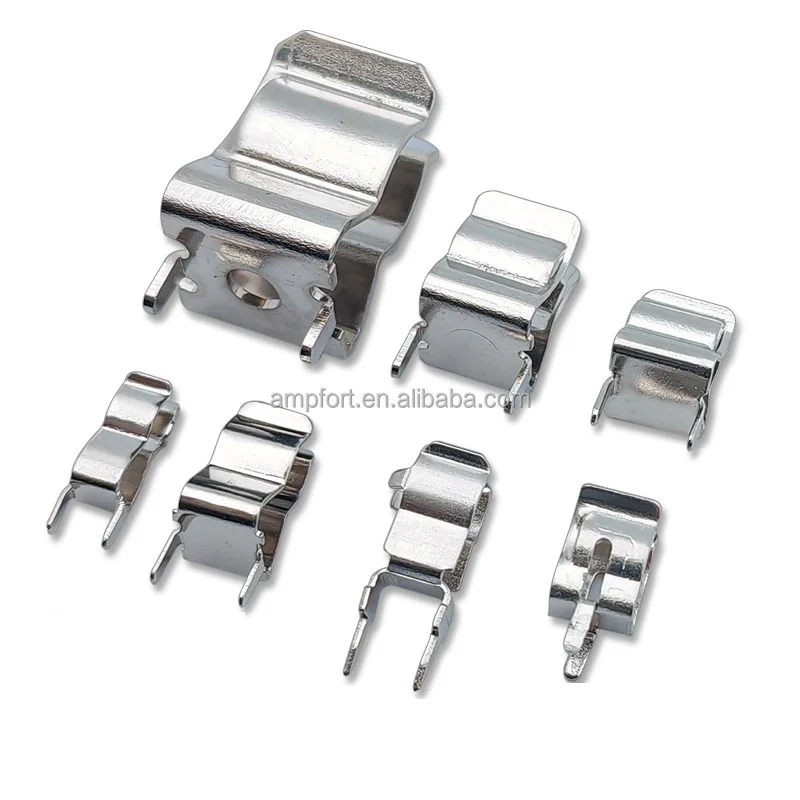

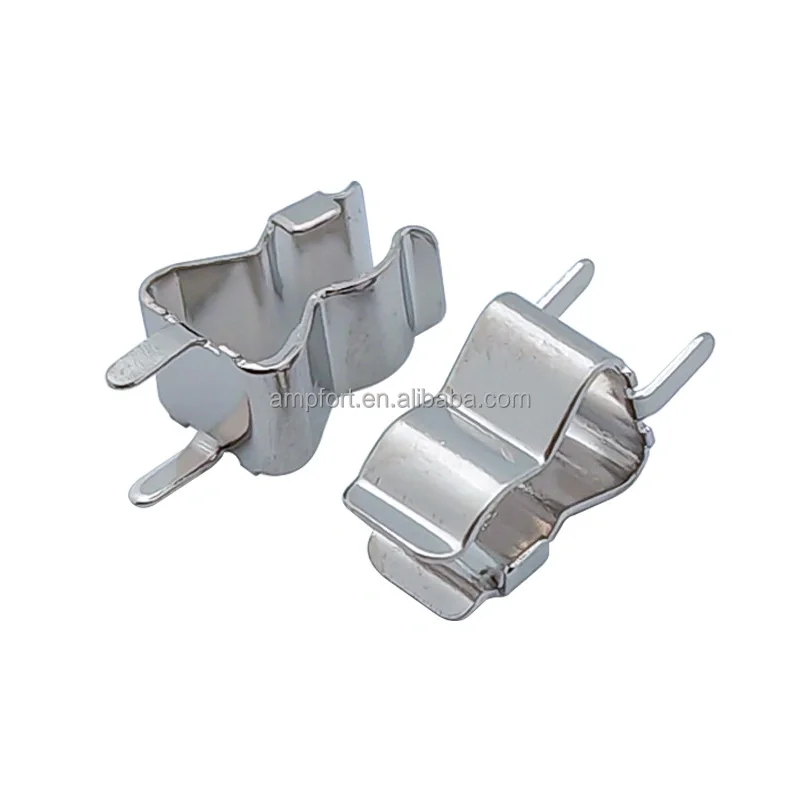

Nickel Plated Brass PCB Fuse Clip

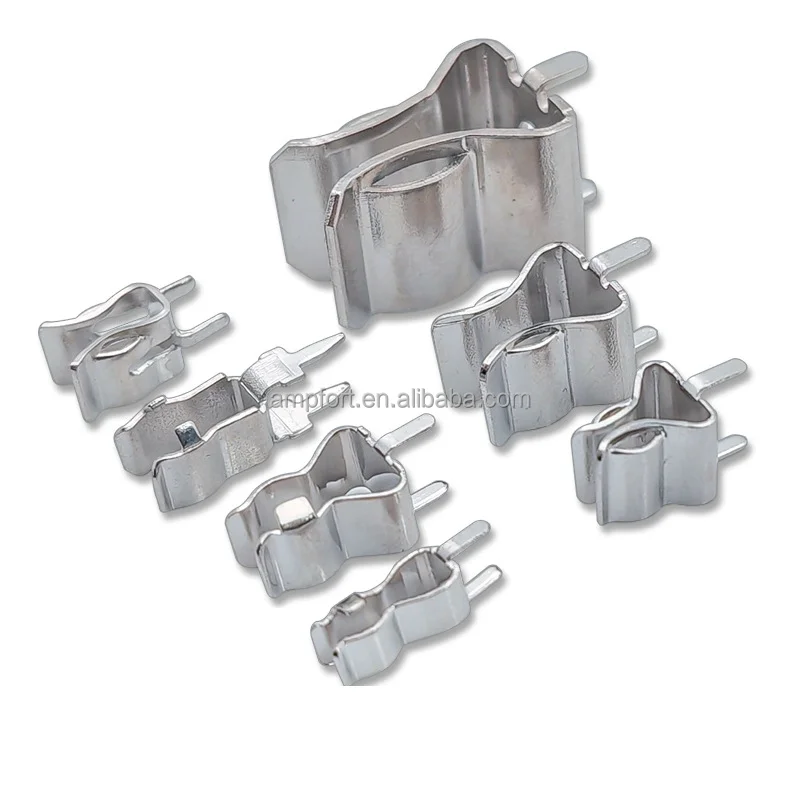

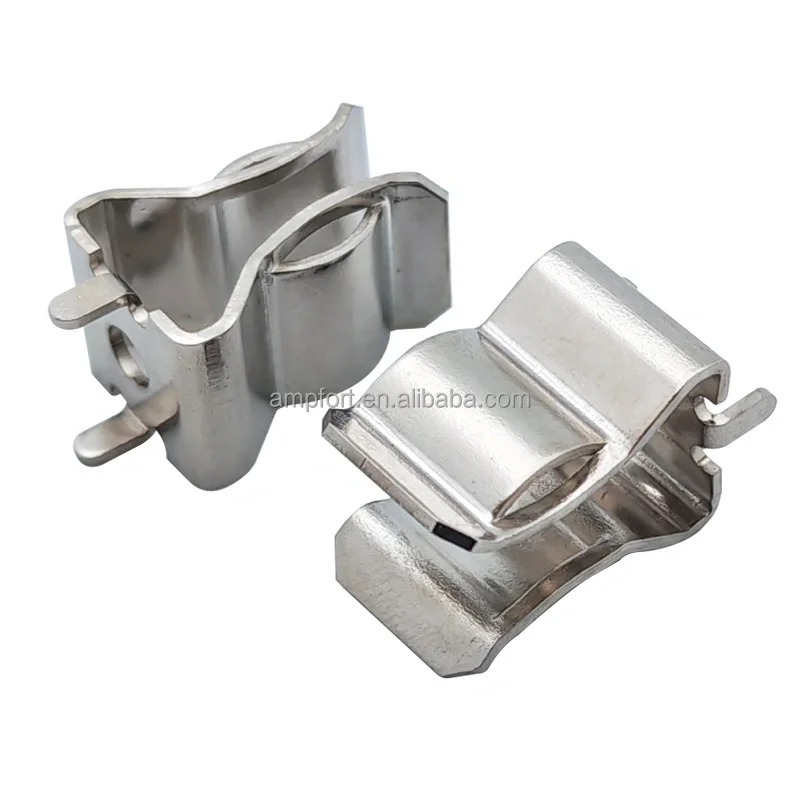

5AG PCB Fuse Clip
